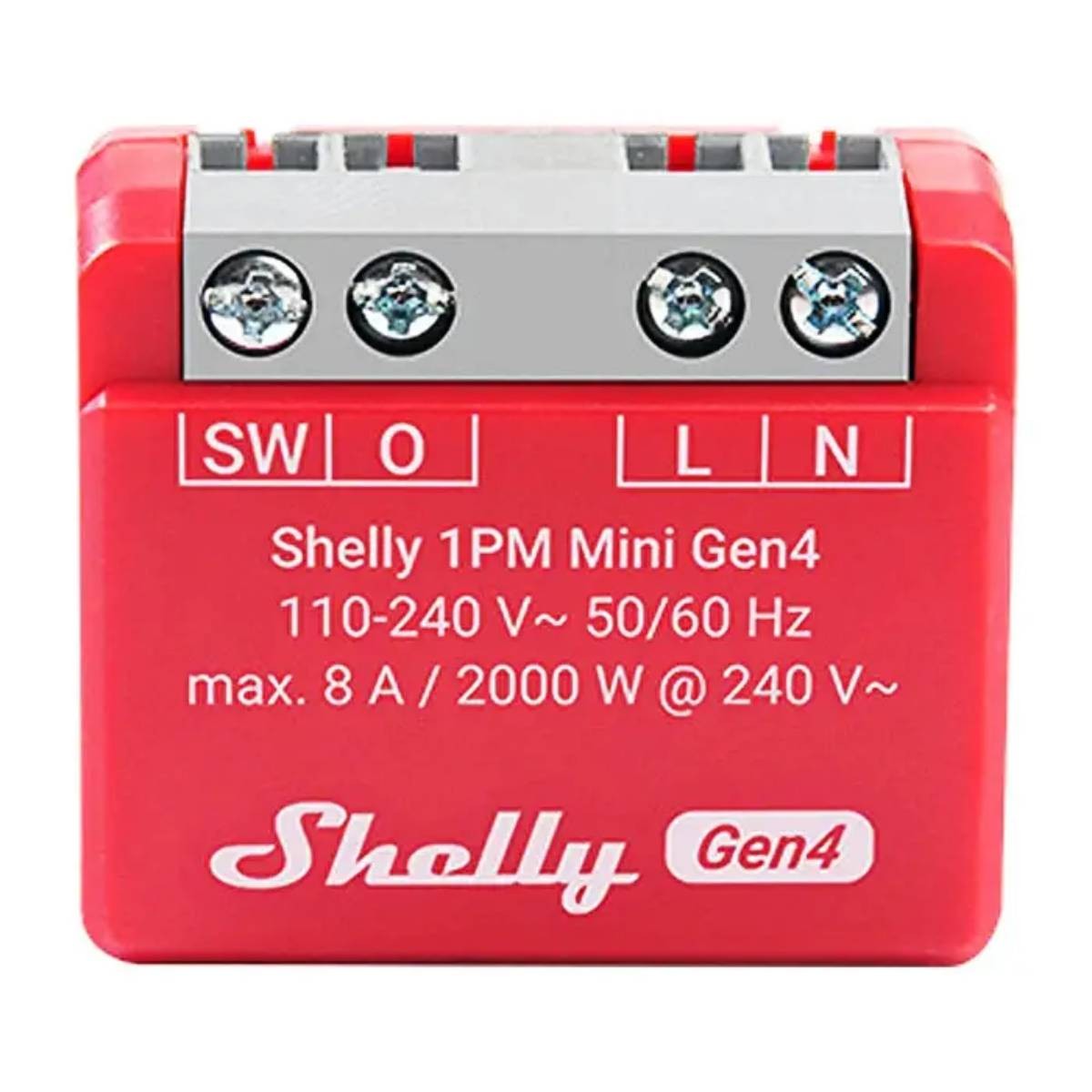

Shelly 1PM Mini Gen4 Automation Module Red

About the Shelly 1PM Mini Gen4 Red Module

Compact and smart automation for your daily life

The Shelly 1PM Mini Gen4 Red is ideal for those who want to control and monitor the energy consumption of lights and small appliances, even in the tightest spaces. With multi-protocol support (Wi-Fi, Zigbee, Bluetooth, and Matter), you can easily integrate the Shelly 1PM Mini Gen4 into your smart home without the need for a dedicated HUB.

Total control and energy measurement

You can remotely turn on and off any device up to 8A (240 VAC) and monitor consumption in real-time, thanks to active power measurement. The module offers protection against voltage drops, current, and maximum power, ensuring safety for your devices.

Easy and versatile installation

The Shelly 1PM Mini Gen4 can be powered between 110 and 240 VAC, and its small size allows for installation behind switches or outlets. The normally open relay supports loads up to 8A, perfect for fans, lighting, small appliances, and much more. Installation requires appropriate external protection according to safety standards.

Advanced features

With the Shelly 1PM Mini Gen4, you have access to smart scheduling, scenario creation, scripting, webhooks, MQTT, and free cloud data storage for up to 365 days. The internal temperature sensor prevents overheating, and the firmware allows you to customize automations according to your routine.

Connectivity and integration

You can choose between Wi-Fi (802.11 b/g/n), Zigbee (802.15.4), and Bluetooth 5.0, integrating the Shelly 1PM Mini Gen4 with voice assistants like Alexa, Google Home, or platforms like Home Assistant. The ESP-Shelly-C68F microcontroller and 8 MB of flash ensure fast and stable performance.

Robust and compact design

The module measures only 29 x 34 x 16 mm and weighs 18 g, making it easy to install in any wall box. The red plastic housing offers durability, and the terminals accept conductors from 0.2 to 2.5 mm².

Ready for any environment

The Shelly 1PM Mini Gen4 operates between -20 °C and 40 °C, with humidity from 30% to 70% RH and up to 2000 m altitude. Thus, you have reliability and safety in any electrical installation in your home.
