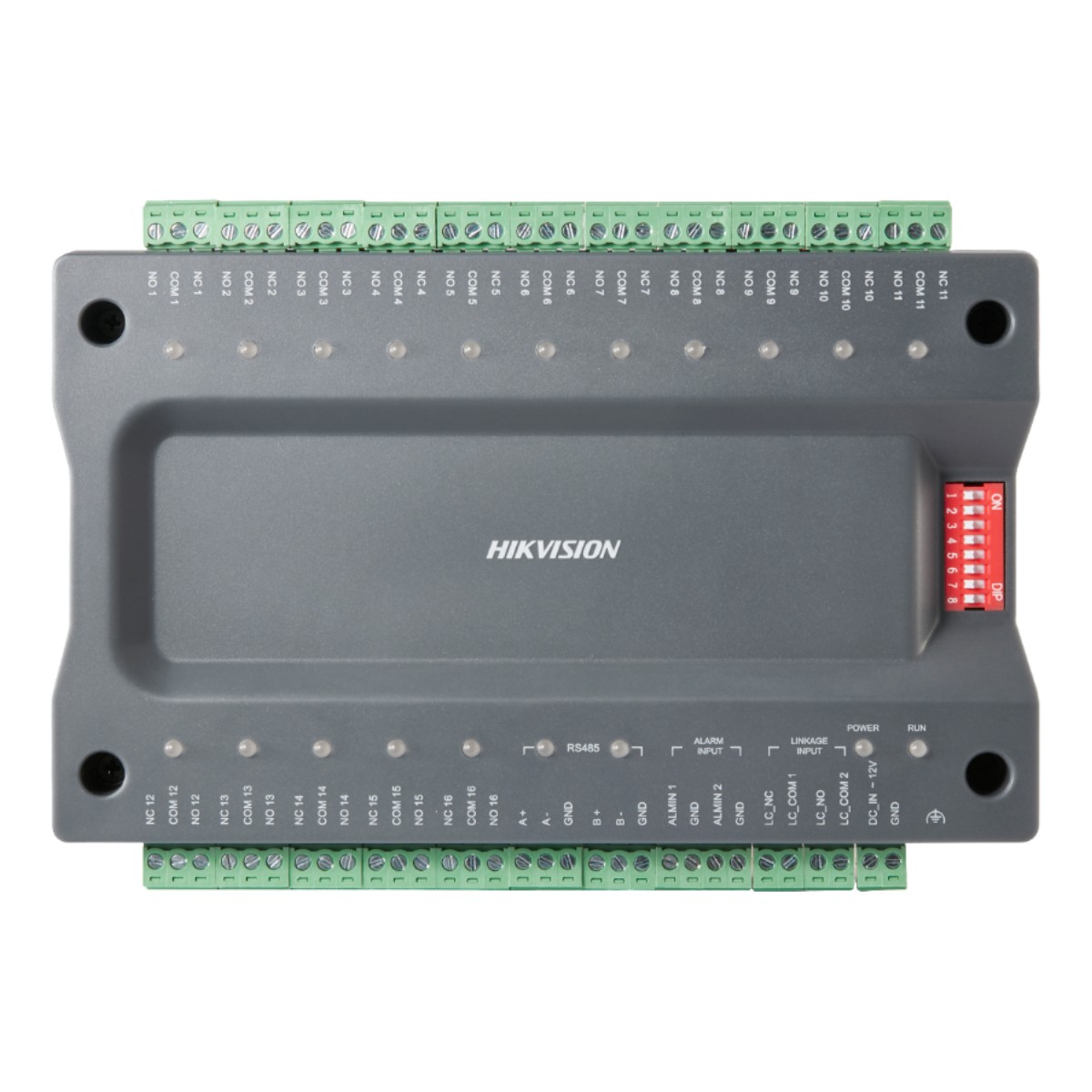

16-Output Elevator Controller Grey

About the 16 Output Gray Elevator Controller

Hikvision Slave Controller for Elevator Management

The Hikvision slave controller for elevators is an essential module in vertical access control systems, designed to work in conjunction with a main controller. Its function is to manage access to floors and control elevator calls, ensuring safe and organized operation.

Communication, Relays, and Operating Modes

The connection to the main controller (requires the main board DS-K2210) is made through the RS485 interface, ensuring fast and stable communication. This model integrates 16 relay outputs that allow for individual control of up to 16 floors or functions, with three available operating modes: button, elevator call, and automatic button. The configuration is practical, using a DIP switch for immediate adjustments, and also includes 2 alarm inputs for connection to complementary security systems.

Integration and Expansion in Access Control

Ideal for residential or commercial buildings, this controller plays a vital role in managing access to specific floors, allowing the restriction of elevator use only to authorized users. Its modular design and the ability to daisy-chain with other units ensure total scalability, making it an efficient and flexible solution for professional access control systems.
