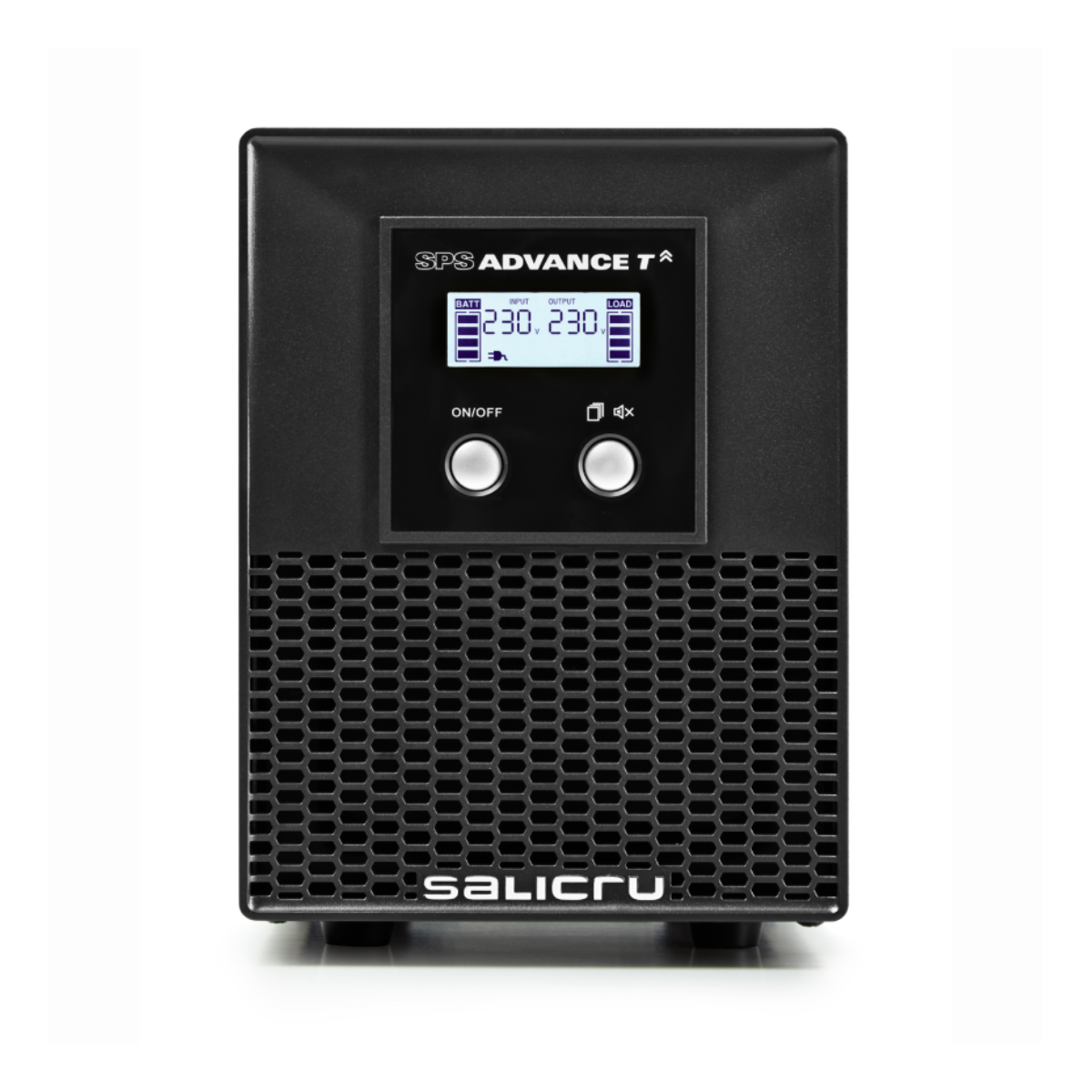

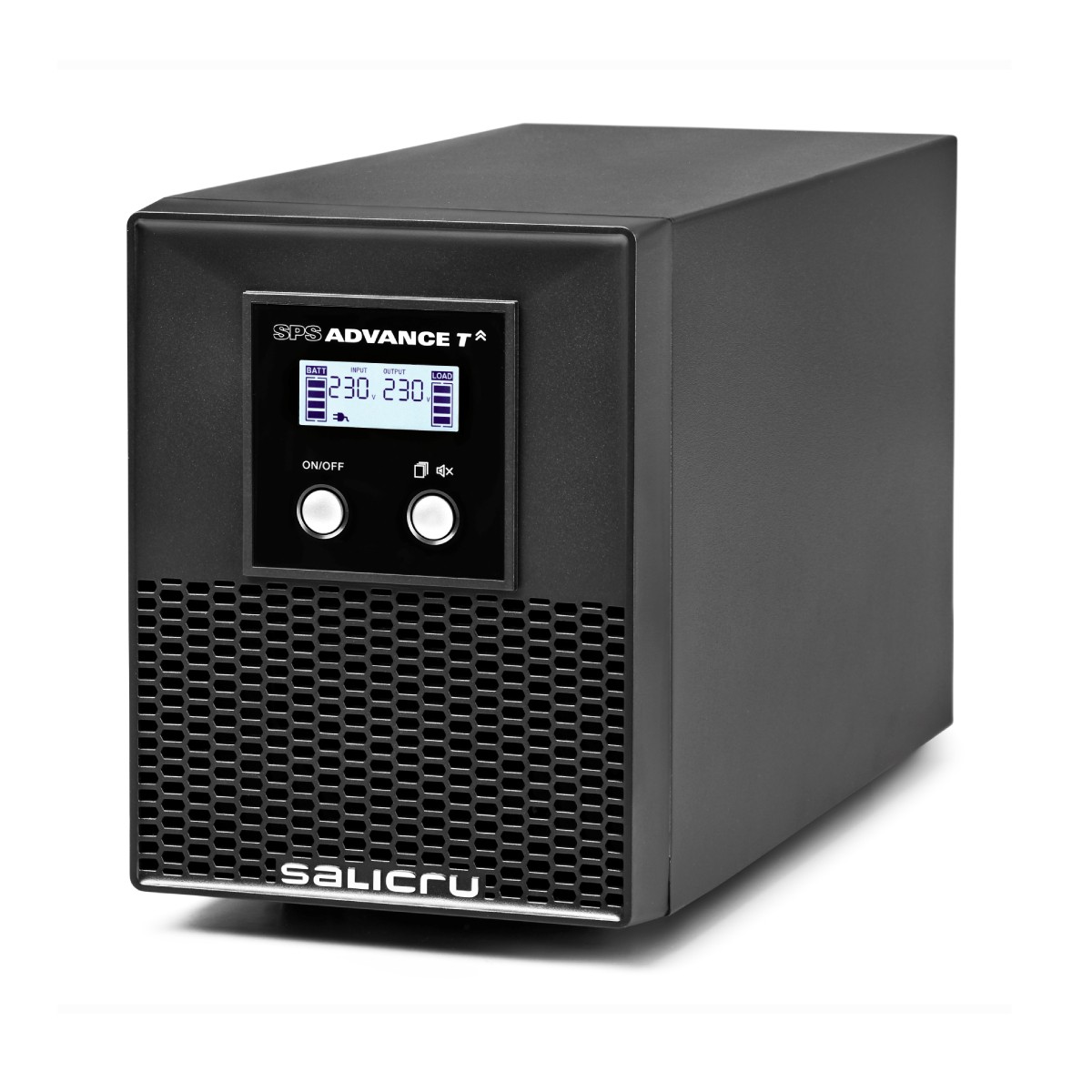

UPS SAI SPS 850 ADV T 850VA/230V IEC/USB Black

€230.90
Tax included
Shipping on: 23-07-2024
Quantity

EAN: 8436035923700 | 3 Years Warranty

local_shipping Delivery: In stock

store Caldas da Rainha Store Out of Stock

store You Get Building Out of Stock

store View availability

About the UPS SAI SPS 850 ADV T 850VA/230V IEC/USB Black

Ethernet/SNMP or GPRS Adapter

SNMP adapter that allows integrating the equipment into a computer network with an IP address. Includes adapter, CD with programming software, configuration cable, Management Information Base (MIB), and user manual. Available in card or box format.

RCCMD Software

Managing and monitoring a UPS in heterogeneous computer networks, where different systems coexist, becomes practically impossible as the less common operating systems in the market lack the necessary software. RCCMD is an application that allows simultaneous and safe disconnection of various servers or workstations on 95% of existing platforms. Like the most comprehensive monitoring software, RCCMD can send messages or commands to different network clients.

UNMS II Software

For networks with more than one UPS for power supply and where it's necessary to centralize monitoring from a single command post, UNMS II (UPS Network Management System) software is the ideal solution. UNMS II not only manages the various installations of all equipment with an Ethernet/SNMP Web Adapter and/or sensors, but also offers packages with 9, 25, 50, or 150 licenses.

External Manual Bypass

External manual bypass for performing maintenance operations, electrically isolating the equipment. "Make before break" type bypass.

Temperature and Humidity Sensor

Sensor to measure the ambient temperature and humidity values of the room where the equipment is located.

ATS - Automatic Transfer System (up to 6 kVA)

Automatic switch between two single-phase AC power lines that, from two sinusoidal power lines, supplies output voltage to the loads. Switching can be automatic or manual.

Product Details

UPS SAI SPS 850 ADV T 850VA/230V IEC/USB Black

Equipment type
UPS
Product colour
Black
Power (VA)
850VA
Cooling type
Active
Power source
Electrical network

Technology: Line-interactive
Format: Tower
Entry
Rated voltage: 230 V
Voltage range 100 % load: 165 ÷ 290 V
Stabilizer: AVR (Buck & Boost)
Rated frequency: 50 Hz / 60 Hz
Frequency range: ±5 Hz
Frequency self-detection: Yeah
Protection: Rearmable Thermal
Output: Nominal voltage 230 V
Accuracy voltage: ±10%
Power (VA/W): 850 / 595
Total Harmonic Distortion (THDv): Waveform (battery mode): Pure sinusoid
Frequency: 50 Hz / 60 Hz (same as input)
Frequency accuracy (battery mode): ±1 Hz
Compatibility loads APFC: Yeah
Yield Stabilizing mode (AVR): > %
Yield Battery Mode: >80%
Battery mode admissible overheads: 110 % for 1 min/ 130 % immediate
Admissive overloads online mode: 110% 1min / 120% immediate

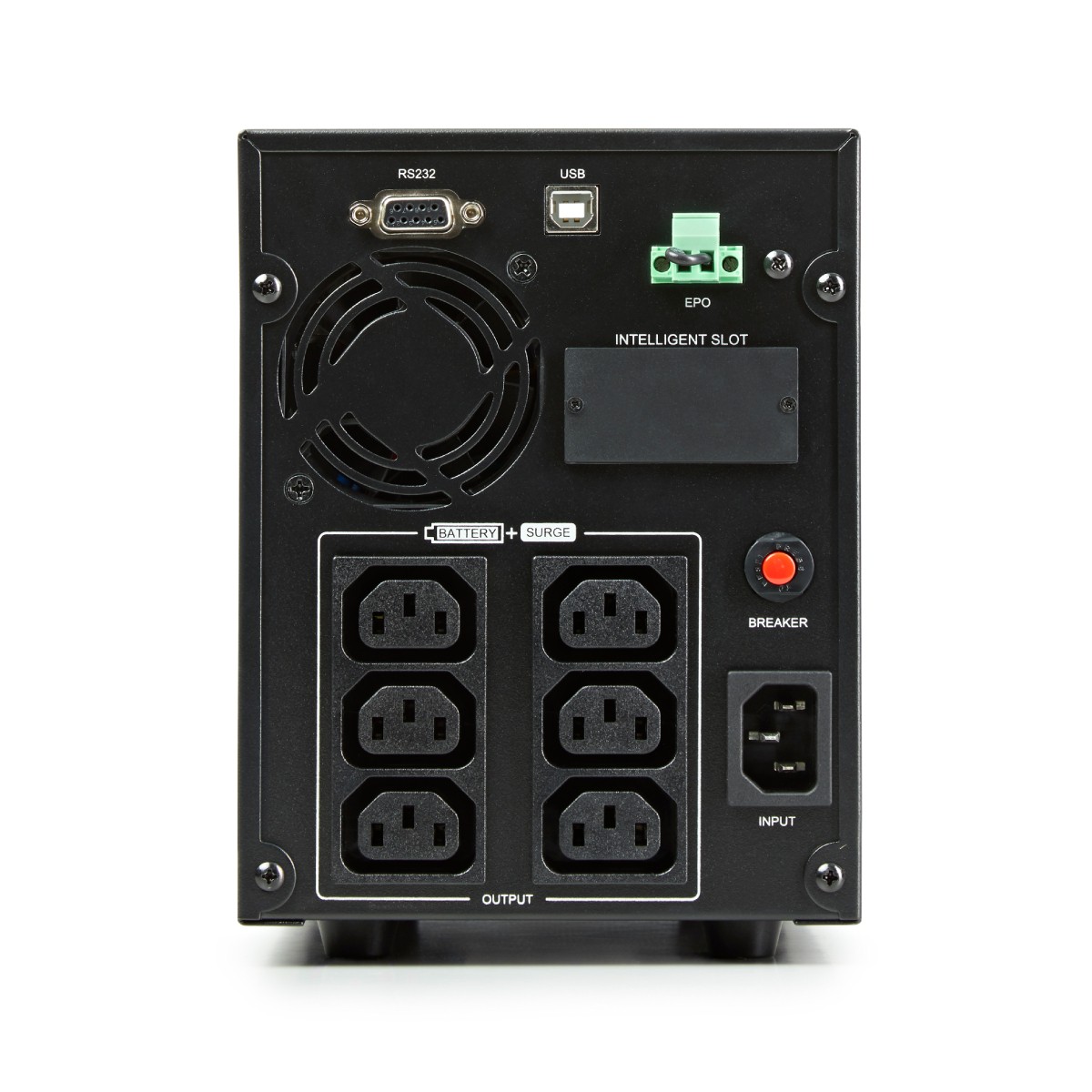

Type of sockets: IEC C13
In Outputs: 6
Battery Type: Pb-Ca sealed, AGM, no maintenance
Load type: I/U (Constant Current / Constant Voltage)
Refill time: 4 hours to 90 %
Battery Test: Automatic on each start + manual
Doors: RS-232 / USB (HID)
Smart Slot: SNMP slot / potential free contacts / MODBUS

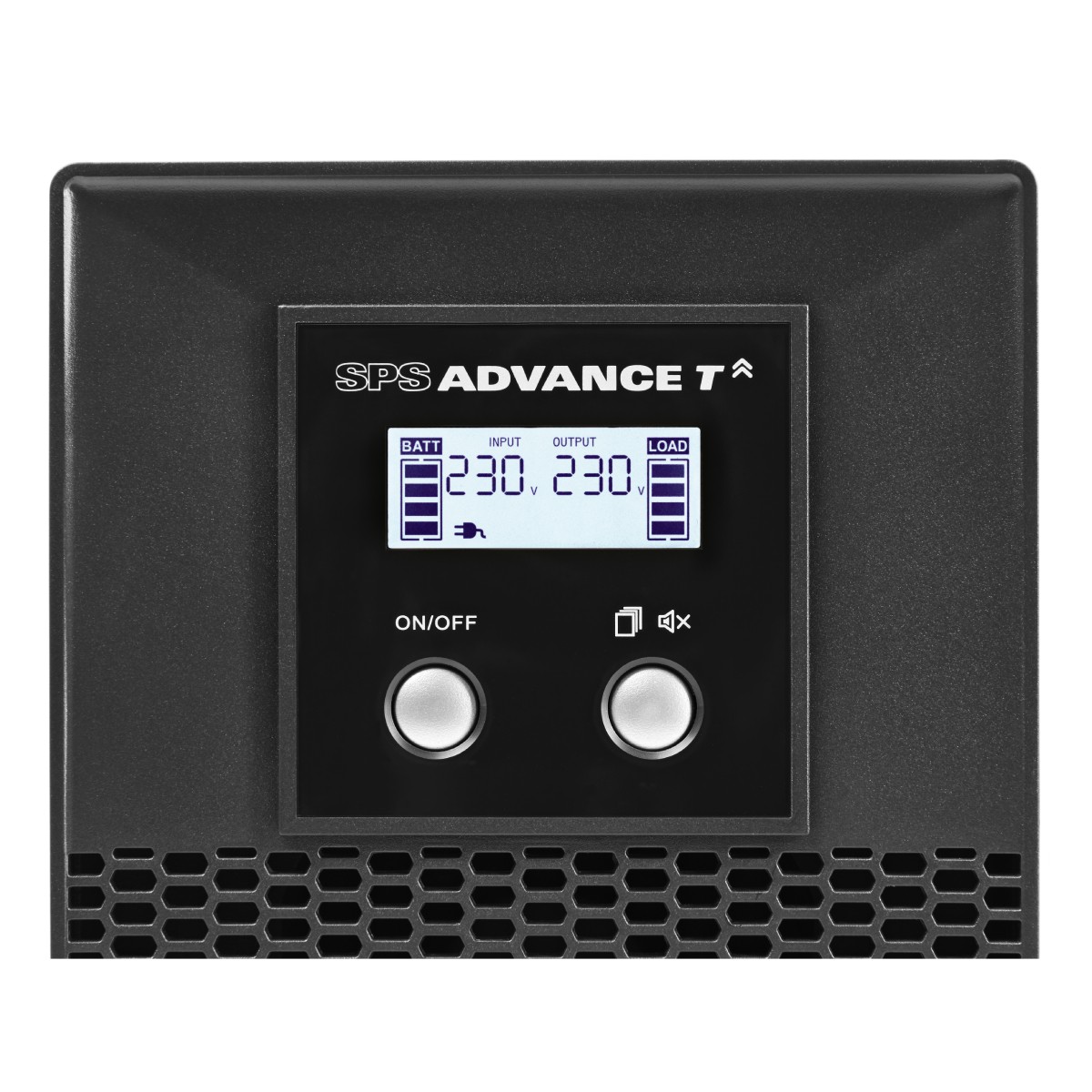

Type: LCD + keyboard
Values: Voltage input and output / % charge / % battery / autonomy
Levels: Charge connected/overload/battery/low battery
Operating modes: Normal / Stabilization (AVR) / Battery / Avaria
Alarm: Battery / low battery / overload / anomaly
Acoustics: Each 30 s for battery operation. Each 2 s for low battery. Each 0.5 s for overload. Continuous for anomaly.
Failure: LCD display
Cold-start (start from batteries): Yeah
Emergency stop (EPO): Yeah
Operating temperature: 0 C ÷ 40 C
Relative humidity: Up to 95% without condensation
Maximum operating altitude: 2.400 m.s.n.m.
Acoustic noise at 1 m: Security: EN-IEC 62040-1
Electromagnetic compatibility (CEM): EN 62040-2
Function: EN 62040-3
Corporate Certifications: ISO 9001, ISO 14001, ISO 4500
